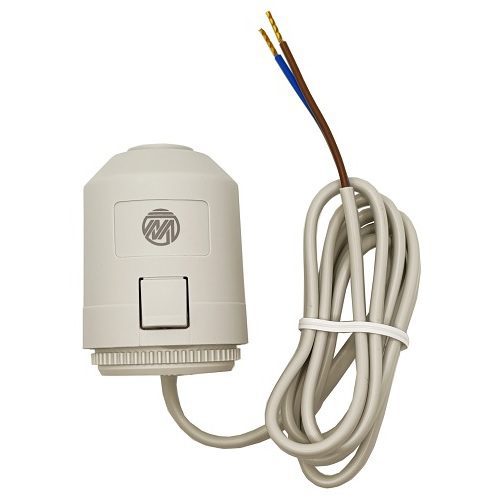

Thermal Actuator, NC, 230V AC

NC AC230V thermal actuator.&#x
&#xFeatures:&#xElectric thermal actuator is designed for controlling the heat distribution equipment. It receives commands from automation devices (such as room thermostats or hub controller) and adjusts the water flow distribution according to set parameters. The thermal actuator allows precise control of room temperature and energy consumption.&#xThe thermal actuator is in NC (normally closed) state. The actuator works with any type of programmable or non-programmable room thermostats.&#xSimple installation, the thermal actuators are connected to the manifold via a VA80 thread adapter. Valve thread adapter VA80 allows easy connection to standard thread M30, locking securely. Energy consumption of each drive is only 2W.&#x
&#xTechnical specifications:&#xPurpose: water heating system.&#xOperating type: NC (normally closed).&#xOperating voltage: AC 230V, 50/60Hz.&#xStarting current: max. 300mA.&#xPower consumption: 2W.&#xInstallation: connected to the collector via an adapter.&#xAdapter: VA 80.&#xCable length: 90cm.&#xOperating temperature: 0°C~ +60°C.&#xStorage temperature: -25°C~ +65°C.&#xOperating humidity: < 80%RH (non-condensing).&#xSafety class: IP54.&#xDimensions: Ø49.4mm x 56.6mm.&#x
&#xWarranty: 12 months.&#x
