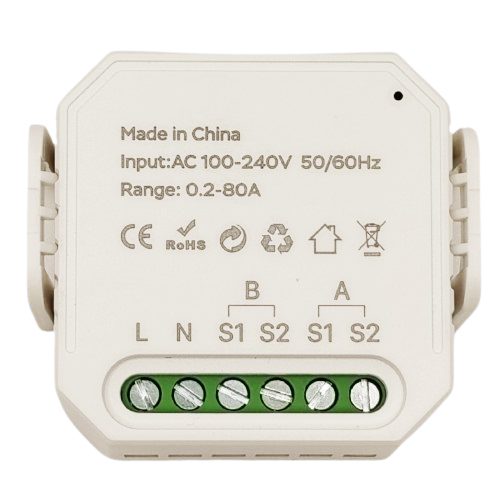

Smart Energy Meter, 2P, 80A, Wi-Fi, Tuya

Smart Energy Meter, 2 Channels, 80A, Wi-Fi, Tuya, with Two CT Current Sensors&#x
&#xFeatures:&#xThe smart dual-channel energy meter is an advanced, compact device designed for accurately monitoring energy consumption in two separate circuits. It is ideally suited for single-phase systems with two independent branches, or for partial monitoring of three-phase systems (e.g., two out of three phases).&#xThe device measures voltage, current, power, and energy consumption independently for each of the two channels.&#xCurrent measurement up to 80A per channel ensures precise monitoring of connected loads.&#xIt uses two 10 mm diameter CT (Split-core) current transformer modules, allowing for quick and convenient installation without interrupting the existing power supply.&#xNote: When installing, please ensure that the circuit measured by each CT sensor is on the same phase as the circuit supplying power to the module. Otherwise, the readings may be inaccurate or inconsistent.&#xConvenient device connectivity via the Tuya smart home app. The app provides real-time energy consumption history and data analysis.&#xOperates over 2.4GHz Wi-Fi. The Tuya app supports Android and iOS smart devices.&#xVoice control compatible with Amazon Alexa and Google Assistant.&#xThe device supports smart automation via the Tuya platform. When power, voltage, or current reaches a specified threshold on either channel, it can trigger actions such as turning a Tuya-compatible switch on or off. This allows for automatic load management, energy-saving routines, or safety-related shutdowns — all configurable within the Tuya Smart or Smart Life app.&#xIncludes LED status indicator and pairing button.&#xSmall, lightweight, and compact. Flexible installation in distribution panels. Comes with a bracket for mounting on a DIN 35mm rail or wall.&#xEasily integrates into smart systems.&#xIdeal for residential and office applications.&#x
&#xTechnical specifications:&#xNumber of channels: 2.&#xMeasurement current: 0.2–80 A.&#xOperating voltage: 100–240V AC.&#xFrequency: 50/60 Hz.&#xEnergy measurement accuracy: ±2%.&#xWi-Fi frequency: 2.4 GHz.&#xWi-Fi standards: 802.11b/g/n.&#xApp: Tuya Smart / Smart Life (Android, iOS).&#xWorks with Amazon Alexa &amp
Google Assistant.&#xReset button: yes.&#xIndicator light: yes.&#xOperating temperature: -10°C to +55°C.&#xCT measurement aperture diameter: 10.5 mm.&#xCT cable length: 0.7 m.&#xDimensions: 46 x 46 x 21.3 mm.&#x
&#xWarranty: 24 months.&#x
