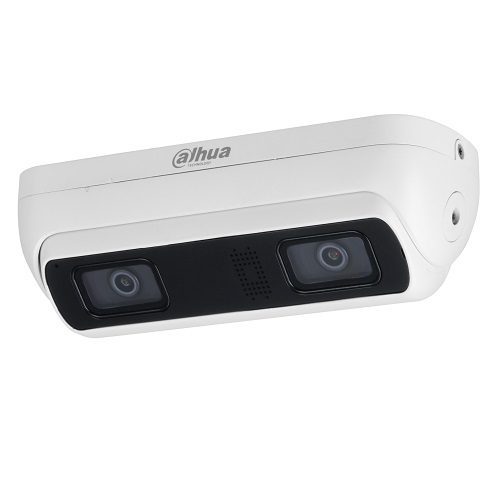

People Counting AI Network Camera 4P HDW8441X-BV-3D 2.8mm

4MP WizMind Dual-Lens Stereo Analysis Network Camera IPC-HDW8441X-BV-3D&#x
&#x
Features:&#x
&#x
• 4-MP 1/2.8″ CMOS image sensor, low luminance, and high definition image.&#x
• Outputs max&#x
• 4 MP (2688 x 1520)@25/30 fps.&#x
• Built-in GPU chips, binocular stereo vision and deep learning algorithm, which can improve the detection accuracy.&#x
• Intelligent functions: Stereo analysis and IVS.&#x
• Stereo analysis: Crossing warning line, warning area intrusion, running detection, people approaching detection, violence detection, fall detection, abnormal number of people detection and people stay detection.&#x
• Privacy Protection: Mosaics can be automatically placed over the face or body of a person to protect their privacy.&#x
• Built-in IR LED, and the max. illumination distance is 20 m.&#x
• Sound Management: With its built-in Mic and Dahua noise reduction algorithms, the camera supports the sound management function, using it to collect vocals, adaptively reduce noise, and filter non-human voices.&#x
• ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.&#x
• Height self-adaptation and height filtering.&#x
• Alarm: 2 in, 2 out
audio: 2 in, 1 out
RS- BN supports max. 512 G Micro SD car Built in Mic and speaker, support two-way talk.&#x
• 12 VDC/PoE/ePoE power supply, 12 VDC power output, max. current 165 mA, and peak current 700 mA, easy for installation.&#x
• IP67 and IK10 protection.&#x
&#x
Specifications:&#x
&#x
Image Sensor: 1/2.8″ CMOS&#x
Max. Resolution: 2688 (H) x 1520 (V)&#x
ROM: 4 GB&#x
RAM: 2 GB&#x
Scanning System: Progressive&#x
Electronic Shutter Speed: Auto/Manual 1/3 s–1/100,000 s&#x
Min. Illumination:&#x
2.0 mm: 0.005 lux@F2.0 (Color,30 IRE), 0.0005 lux@F2.0 (B/W,30 IRE), 0 lux (Illuminator on)&#x
2.8 mm: 0.005 lux@F1.6(Color, 30 IRE), 0.0005 lux@F1.6 (B/W, 30 IRE), 0 lux (Illuminator on)&#x
S/N Ratio: >56 dB&#x
Illumination Distance: Up to 20 m (65.62 ft) (IR)&#x
Illuminator On/Off Control: Auto
Manual&#x
Illuminator Number: 1 (IR LED)&#x
Angle Adjustment: Tilt: -10° to 70°&#x
Lens Type: Fixed-focal&#x
Lens Mount: M12&#x
Focal Length: 2.8 mm
2.0 mm&#x
Max. Aperture: 2.0 mm: F2. 2.8 mm: F1.6&#x
Field of View:&#x
2.0 mm: H: 108°
V: 74°
D: 117°&#x
2.8 mm: H: 87°
V: 55°
D: 97°&#x
Iris Control: Fixed&#x
Close Focus Distance: 2.0 mm: 0.4 m (1.31 ft)
2.8 mm: 1.1 m (3.61 ft)&#x
DORI Distance:&#x
2.0 mm: Detect 44.8 m, Observe 17.9 m, Recognize 9.0 m, Identify 4.5 m&#x
2.8 mm: Detect 63.6 m, Observe 25.4 m, Recognize 12.7 m, Identify 6.4 m&#x
DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.&#x
Smart Event: IVS Abandoned object
missing object&#x
Intelligence:IVS (Perimeter Protection): Tripwir intrusion
fast moving (the three functions support the classification and accurate detection of vehicle and human)
parking detection
people gathering
loitering detection
privacy protection&#x
Stereo Analysis: Crossing warning lin warning area intrusion
running detection (only supported by inclined mount cameras)
people approaching detection
violence detection (including fighting and smashing)
fall detection
abnormal number of people detection
people stay detection
privacy protection
height filtering&#x
Smart Search: Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.&#x
Video Compression: H. H. H.264H
H. MJPEG (Only supported by the sub stream)&#x
Smart Codec: Smart H.265+
Smart H.264+&#x
AI Coding: AI H. AI H.264&#x
Video Frame Rate:&#x
Main stream: 2688 x 1520@(1–25/30 fps)&#x
sub stream: 1920 x 1080@(1–25/30 fps)&#x
third stream: 1920 x 1080@(1–25/30 fps)&#x
*The values above are the max. frame rates of each stream
for multiple streams, the values will be subjected to the total encoding capacity.&#x
Stream Capability: 3 streams&#x
Resolution: 4M (2688 x 1520/2560 x 1440)
3M (2048 x 1536/2304 x 1296)
1080p (1920 x 1080)
1.3M (1280 x 960)
720p (1280 x 720)
D1 (704 x 576/704 x 480)
VGA (640 x 480)
CIF (352 x 288/352 x 240)&#x
Bit Rate Control: ABR
CBR
VBR&#x
Video Bit Rate: H.264: 3 kbps–8192 kbps
H.265: 3 kbps–8192 kbps&#x
Day/Night: Auto(ICR)/Color/B/W&#x
BLC: Yes&#x
HLC: Yes&#x
WDR: DWDR&#x
White Balance: Auto
natural
street lamp
outdoor
manual
regional custom&#x
Gain Control: Auto&#x
Noise Reduction: 3D NR&#x
Motion Detection: OFF/ON (4 areas, rectangular)&#x
Region of Interest (RoI): Yes (4 areas)&#x
Image Stabilization: Electronic Image Stabilization (EIS)&#x
Smart Illumination: Yes&#x
Defog: Yes&#x
Privacy Masking: 8 areas&#x
Built-in MIC: Yes, built-in Mic&#x
Built-in Speaker: Yes, built-in speaker&#x
Audio Compression: G. G.711Mu
PCM
G. G.723&#x
Alarm Event: No SD car SD card full
SD card error
network disconnection
IP conflict
voltage detection
illegal access
motion detection
video tampering
scene changing
audio detection
tripwir intrusion
fast moving
abandoned object
missing object
loitering detection
people gathering
parking detection
crossing warning lin warning area intrusion
running detection
abnormal number of people detection
fall detection
people approaching detection
violence detection
people stay detection&#x
Network Port: RJ-45 (10/100/1000 Base-T)&#x
SDK and API: Yes&#x
Network Protocol: IPv IPv HTTP
TCP
UDP
ARP
RTP
RTSP
RTCP
RTMP
SMTP
FTP
SFTP
DHCP
DNS
DDNS
QoS
UPnP
NTP
Multicast
ICMP
IGMP
NFS
PPPo SNMP
auto registration&#x
Interoperability: ONVIF (Profile S
Profile G
Profile T)
P2P
CGI&#x
User/Host: 20&#x
Storage: FTP
SFTP
Micro SD card (support max. 512 GB)
NAS&#x
Browser: IE: IE 9 and later
Chrome: Chrome 41 and later
Firefox: Firefox 50 and later
Safari: Safari 10 and later&#x
Management Software: Smart PSS Lit DSS
DMSS&#x
Mobile Client: iOS
Android&#x
Cyber Security: Configuration encryption
Trusted execution
Session security
Digest
Security logs
WSSAccount lockout
Security warning
syslog
Video encryption
802.1x
IP/MAC filtering
HTTPS
Trusted upgrTrusted boot
Firmware encryption
Generation and importing of x.509 certification&#x
Certifications: CE-LVD: EN62368-1, CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU&#x
Port: RS-485, 1 (baud rate range: 1200 bps–115200 bps)&#x
Audio Input: 2 channels (RCA port)&#x
Audio Output: 1 channel (RCA port)&#x
Alarm Input: 2 channels in: wet contact, 5 mA 3–5 VDC&#x
Alarm Output: 2 channels out: wet contact, 300 mA 12VDC&#x
Analog Output: 1 channel (CVBS output: BNC)&#x
Power Output: 12 VDC power output, max. current 165 mA, peak current 700 mA&#x
Power Supply: 12 VDC/PoE (802.3af)/ePoE&#x
Power Consumption: Basic: 5.9 W (12 VDC), 7 W (PoE)
&#x
Max. (intelligence on + IR intensity + turn on the speaker+ power output): 10.8 W (12 VDC), 12.9 W (PoE)&#x
Operating Temperature: -40 °C to +60 °C (-40 °F to +140 °F)&#x
Operating Humidity: <95% (RH), non-condensing&#x Storage Temperature: -40 °C to +60 °C (-40 °F to +140 °F)&#x Storage Humidity: <95% (RH), non-condensing&#x Protection: IP IK10.&#x Casing Material: Metal&#x Product Dimensions: 204.0 mm x 78.0 mm x 61.6 mm (8.03" x 3.07" x 2.43")(L x W x H).&#x Net Weight: 0.82 kg.&#x Gross Weight: 1.14 kg.&#x
