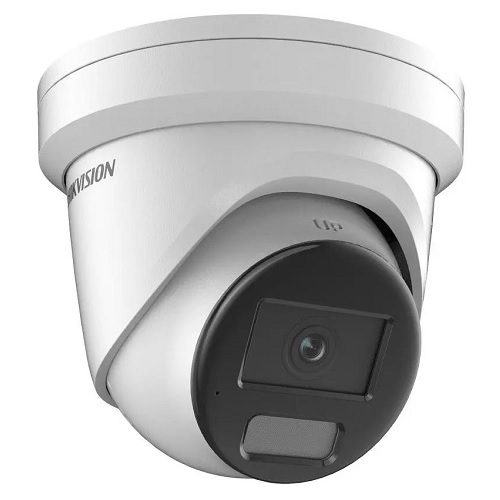

Hikvision DS-2CD2347G2H-LIU 2.8mm

FeaturesModel: DS-2CD2347G2H-LIU(2.8mm)(eF), whiteHigh quality imaging with 4 MP resolutionSmart Hybrid Light: advanced technology with long rangeClear imaging against strong back light due to 130 dB WDR technologyEfficient H.265+ compression technologyFocus on human and vehicle classification based on deep learning-U: Built-in microphone for real-time audio securityWater and dust resistant (IP67)SpecificationsCamera• Image Sensor: 1/1.8″ Progressive Scan CMOS• Max. Resolution: 2688 × 1520• Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light• Shutter Time: 1/3 s to 1/100,000 s• Day &amp
Night: IR cut filter• Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°Lens• Lens Type: Fixed focal lens, 2.8mm• Focal Length &amp
FOV: 2.8 mm, horizontal FOV 112°, vertical FOV 61°, diagonal FOV 134°• Lens Mount: M16• Iris Type: Fixed• Aperture: F1.0• DORI 2.8 mm, D: 58 m, O: 23 m, R: 11 m, I: 6 mIlluminator• Supplement Light Type : White Light• Supplement Light Range Up to 30 m• Smart Supplement Light Yes• IR Wavelength 850 nmVideo• Main Stream:50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)• Sub-Stream:50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)• Third Stream:50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)*Third stream is supported under certain settings.• Video Compression:Main stream: H.265+/H.265/H.264+/H.264Sub-stream: H.265/H.264/MJPEG,• Video Bit Rate 32 Kbps to 8 Mbps• H.264 Type Baseline Profile, Main Profile, High Profile• H.265 Type Main Profile• Bit Rate Control CBR, VBR• Scalable Video Coding (SVC) H.264 and H.265 encoding• Region of Interest (ROI) 1 fixed region for main stream and sub-streamAudio• Environment Noise Filtering -U: Yes• Audio Compression -U: G.711 /G.722.1/ G.726/ MP2L2/ PCM/MP3/ AAC-LC• Audio Bit Rate -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)• Audio Sampling Rate -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHzNetwork• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP,SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP,WebSocket, WebSockets, SRTP, SFTP• Simultaneous Live View: Up to 6 channels• API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP• User/Host: Up to 32 users
3 user levels: administrator, operator, and user• Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication(EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digestauthentication for HTTP/HTTPS, WSSE and digest authentication for Open NetworkVideo Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS1.1/1.2/1.3, host authentication (MAC address)• Network Storage: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)• Client: iVMS-4200, Hik-Connect, Hik-Central• Web Browser: Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+Image• Wide Dynamic Range (WDR) 130 dB• SNR > /= 52 dB• Day/Night Switch: Auto, Schedule• Image Enhancement: BLC, HLC, 3D DNR• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser• Image Parameters Switch: yesInterface• Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port• On-Board Storage: Built-in memory card slot, support microSD/ microSDHC/ microSDXC card, up to 512 GB• Built-in Microphone: -U: Yes• Reset Key: YesEvent• Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception• Linkage: Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email• Smart Event: Scene change detectionDeep Learning Function• Face Capture: Yes• Perimeter Protection: Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)General• Power: 12 VDC ± 25%, 0.41 A, max. 5 W, Ø 5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 6 W• Material: Cover: Metal, main body: Metal• Dimension: Ø 138.3 mm × 115.4 mm (Ø 5.4″ × 4.5″)• Package Dimension: 170 mm × 170 mm × 160 mm (6.7″ × 6.7″ × 6.3″)• Weight Approx. Approx. 750 g (1.7 lb.)• With Package Weight Approx. 1055 g (2.3 lb.)• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)• General Function: Heartbeat, mirror, password reset via email, pixel counter, anti-banding• Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), UkrainianApproval• EMC:CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011 +A1: 2014,RCM: AS/NZS CISPR 32: 2015,IC: ICES-003: Issue 7,KC: KN32: 2015, KN35: 2015• Safety:UL: UL 62368-1,CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005• Environment: CE-RoHS: 2011/65/EU• Protection IP67: IEC 60529-2013
