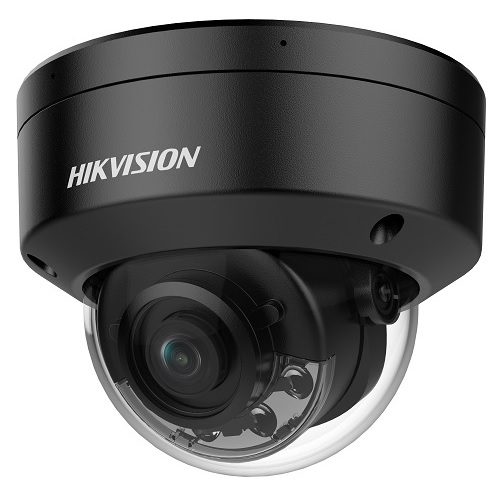

Hikvision DS-2CD2187G2H-LISU 2.8mm, Black

8 MP Smart Hybrid Light with ColorVu Fixed Mini Dome Network CamerFeaturesModel: DS-2CD2187G2H-LISU(2.8mm) dome, blackHigh quality imaging with 8 MP resolutionSmart Hybrid Light: advanced technology with long rangeClear imaging against strong back light due to 130 dB WDR technologyEfficient H.265+ compression technologyFocus on human and vehicle classification based on deep learning-U: Built-in microphone for real-time audio securityWater and dust resistant (IP67) and vandal-resistant (IK10)SpecificationsCamera• Image Sensor: 1/1.8″ Progressive Scan CMOS• Max. Resolution: 3840 × 2160• Min. Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light• Shutter Time: 1/3 s to 1/100,000 s• Day &amp
Night: IR cut filter• Angle Adjustment Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°Lens• Lens Type: Fixed focal lens, 2.8mm• Focal Length &amp
FOV: 2.8 mm, horizontal FOV 105.1°, vertical FOV 54.8°, diagonal FOV 128.2°• Lens Mount: M16• Iris Type: Fixed• Aperture: F1.0• Depth of Field: 2.8 mm: 3.3 m to infinite• DORI 2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 mIlluminator• Supplement Light Type: IR, White Light• Supplement Light Range Up to 30 m• Smart Supplement Light Yes• IR Wavelength 850 nmVideo• Main Stream:50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)60 Hz: 24 fps (3840 × 2160)
30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)• Sub-Stream:50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)• Third Stream:50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)*Third stream is supported under certain settings.• Video Compression:Main stream: H.265+/H.265/H.264+/H.264Sub-stream: H.265/H.264/MJPEG,• Video Bit Rate 32 Kbps to 16 Mbps• H.264 Type Baseline Profile, Main Profile, High Profile• H.265 Type Main Profile• Bit Rate Control CBR, VBR• Scalable Video Coding (SVC) H.264 and H.265 encoding• Region of Interest (ROI) 1 fixed region for main stream and sub-streamAudio• Audio Type-U: Mono sound• Environment Noise Filtering -U: Yes• Audio Compression -U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC• Audio Bit Rate -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64
Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)• Audio Sampling Rate -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHzNetwork• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP• Simultaneous Live View: Up to 6 channels• API: Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP• User/Host: Up to 32 users
3 user levels: administrator, operator, and user• Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication(EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)• Network Storage: NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.• Client: iVMS-4200, Hik-Connect, Hik-Central• Web Browser: Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+Image• Wide Dynamic Range (WDR) 130 dB• SNR > /= 52 dB• Day/Night Switch: Day, Night, Auto, Schedule• Image Enhancement: BLC, HLC, 3D DNR• Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser• Image Parameters Switch: yes• Privacy Mask: 4 programmable polygon privacy maskInterface• Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port• On-Board Storage: Built-in memory card slot, support microSD/ microSDHC/ microSDXC card, up to 512 GB• Built-in Microphone: -U: Yes• Audio: -S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KiloOhm, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ohm, interface type: non-equilibrium• Alarm: -S: 1 input, 1 output (max. 12 VDC, 30 mA)• Reset Key: YesEvent• Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception• Linkage: Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email• Smart Event: Scene change detectionDeep Learning Function• Face Capture: Yes• Perimeter Protection: Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)General• Power: 12 VDC ± 25% ,0.66 A, max. 8 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 9.5 W• Material: Base: aluminum alloy, cover: aluminum alloy• Dimension: Ø121.5 mm × 97.6 mm (Ø4.78″ × 3.84″)• Package Dimension: 234 mm × 120 mm × 117 mm (9.2″ × 4.7″ × 4.6″)• Weight Approx. 525 g (1.2 lb.)• With Package Weight Approx. 750 g (1.7 lb.)• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)• General Function: Heartbeat, mirror, password reset via email, pixel counter, anti-banding• Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), UkrainianApproval• EMC:CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011 +A1: 2014,RCM: AS/NZS CISPR 32: 2015,IC: ICES-003: Issue 7,KC: KN32: 2015, KN35: 2015• Safety:UL: UL 62368-1,CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005• Environment: CE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006• Protection: IP67: IEC 60529-2013, IK10: IEC 62262:2002
