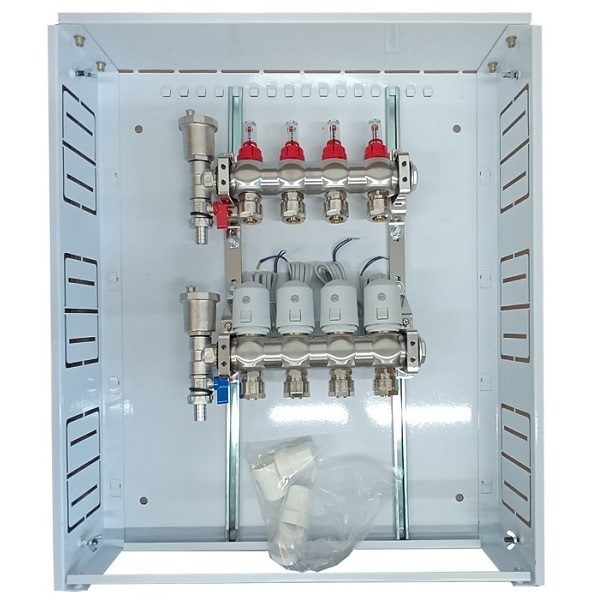

Heating Manifold 4 Loops with Thermal Actuators NC AC230V and Flow Meters

Underfloor heating manifold 4 loops with thermal actuators NC AC230V and flow meters&#x&#xThe set includes: Flush mounting metal box, 4 loops collector, flow meters and NC AC230V thermal actuators.&#x
&#xFeatures:&#xThe UFH (undefloor heating manifold) is the control centre for your underfloor heating, allowing you to individually control the zones designed into the system, ensuring warm water flows to the spaces that need heating and not to those that don’t.&#xElectric thermal actuator is designed for controlling the heat distribution equipment. It receives commands from automation devices (such as room thermostats or hub controller) and adjusts the water flow distribution according to set parameters. The thermal actuator allows precise control of room temperature and energy consumption.&#xThe thermal actuator is in NC (normally closed) state. The actuator works with any type of programmable or non-programmable room thermostats.&#xSimple installation, the thermal actuators are connected to the manifold via a VA80 thread adapter. Valve thread adapter VA80 allows easy connection to standard thread M30, locking securely. Energy consumption of each drive is only 2W.&#xThe supplied flow meters (flow indicators) are intended for monitoring the flow of water and adjusting pressures.&#xThe collector cabinet is installed on the wall, flush mounting. The door with a tongue, locks, opens at an angle of 135 degrees.&#x
&#xTechnical specifications:&#xManifold:&#xInstallation: flush mounting.&#xSize: 640x530x118mm.&#xDepth: 110mm.&#xDoor dimensions: 578mm x 475mm.&#xNumber of flow meters: 4 pcs.&#xNumber of thermal actuators: 4 pcs.&#xAir vent nodes: 2 pcs.&#xHeating circuit pipe 16mm adapters: 4 pcs.&#xColor: light gray.&#x&#xThermal actuator:&#xPurpose: water heating system.&#xOperating type: NC (normally closed).&#xOperating voltage: AC 230V, 50/60Hz.&#xStarting current: max. 300mA.&#xPower consumption: 2W.&#xInstallation: connected to the collector via an adapter.&#xAdapter: VA 80.&#xCable length: 90cm.&#xOperating temperature: 0°C~ +60°C.&#xStorage temperature: -25°C~ +65°C.&#xOperating humidity: < 80%RH (non-condensing).&#xSafety class: IP54.&#xDimensions: Ø49.4mm x 56.6mm.&#x
&#xWarranty: 12 months.&#x
