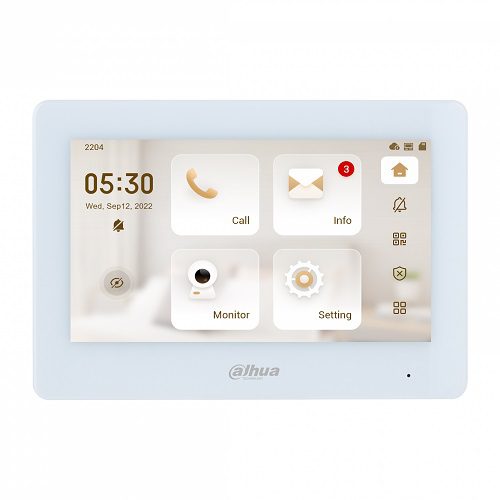

7- inch Color Indoor Monitor VTH5421HW-W

System

Main Processor

Embedded processor

Operating System

Embedded Linux operating system

Interoperability

ONVI SDK

Network Protocol

RTSP
RTP
SIP
DNS
SSH

Basic

Screen Type

Capacitive touchscreen

Display

7″ TFT

Screen Resolution

1024 × 600

Audio Compression

G. G.711u
PCM

Audio Input

1

Audio Output

Built-in speaker

Audio Mode

2-way Audio

Audio Enhancement

Echo suppression

Audio Bit Rate

16 kHz
16 Bit

Function

Communication Mode

Full digital

Information Release

Receive and view text information released by the management center

Leave Videos

Yes (insert an SD card into the indoor monitor)

DND Mode

Do not disturb period can be set
Do not disturb mode

Number of Extensions

Villa: 9

Apartment: 4

Wi-Fi intercom: 1 main monitor, 2 extension monitors

Wi-Fi

Yes

Wireless Standard

IEEE802.11b/802.11g/802.11n

Wireless Frequency Range

2,412–2,472 MHz

Storage

Micro SD card (up to 64 GB)

Wireless Security Encryption

WPA/WP WPA-PSK/WPA2-PSK

Performance

Casing

PC + ABS

Port

RS485

1

Alarm Input

6

Alarm Output

1

Power Output

1 (12 V/200 mA)

Door Bell

Yes (use any alarm input port)

Network

One 10 /100 Mbps Ethernet

General

Appearance Color

White/Black

Power Supply

12 VDC 1 A

Standard PoE (36–57 V, 0.35 A)

Installation

Surface mount

Certifications

FCC

Dimensions

189.0 mm × 130.0 mm × 26.9 mm (7.44″ × 5.12″ × 1.06″)

Operating Temperature

–10 °C to +55 °C (+14 °F to 131 °F)

Operating Humidity

10%-95% RH (non-condensing)

Operating Altitude

Beneath 3000 m (9842.52 ft)

Power Consumption

Standby ? 2 W
working ? 6 W

Net Weight

0.35 kg (0.78 lb)

Gross Weight

0.56 kg (1.23 lb)
