Video Doorbell, 4MP Battery Camera, Tuya, Wi-Fi

Video Doorbell, 4MP Battery Camera, Tuya, Wi-Fi

Video doorbell, Tuya

The set includes video doorbell (4MP, 117° coverage, 2.3mm lens, IP54, two-wire connection/ battery 5200mAh) and AC indoor chime.


Features:
The smart video doorbell allows you to conveniently control your smart home.
The video doorbell has a mechanical call button.
The device allows you to see arriving visitors and talk to them live. The camera’s viewing angle is up to 117° horizontally, up to 87° vertically.
Remote control of the video doorbell is supported via the smart Tuya app (via phone, tablet).
The built-in 4MP color camera allows you to monitor everything that is happening behind the door. Night vision allows you to monitor at night and record images to an SD card when motion is detected.
Using a 2.4GHz Wi-Fi connection, the Tuya app supports Android or iOS smart devices.
The video camera doorbell can be powered by a rechargeable battery and connected via RF radio at a frequency of 433Hz with an internal sound transmitting device. The video call can also be installed in place of a previously existing intercom using a two-wire connection (extension wires and nuts are purchased separately).
Storage: micro SD card up to 256GB. Note: SD card is purchased separately.


Technical specification:
Camera resolution: 4MP (2208×1656 pixels), 4:3 format.
Viewing angle: up to 117° (H), up to 87°(V).
Lens: 2.3mm F2.2.
IR illumination: 8m.
Video compression: H.264/H.265.
Wi-Fi connection frequency: 2.4GHz.
Network protocols: IEEE 802.11 b/g/n.
Encryption: WPA-PSK/ WPA2-PSK.
Chipset: T31ZX+JX-K05+ATBM6441.
Power supply: AC 8-24V/500mA (two-wire connection) / DC 5V/1A (USB Type-C).
Power interface: USB Type-C socket.
Battery capacity: 5200mAh.
RF frequency: 433MHz.
DNR: up to 100dB.
PIR detection: up to 4m, 117° angle.
App: Tuya Smart / Smart Life (Android, iOS).
SD card slot (supports card up to 256 GB).
Built-in microphone and speaker.
Two-way talk.
Motion-activated recording (to SD card) supported.
Human detection.
IR night vision.
Camera dimensions: 157.6mmx64mmx31mm.
Doorbell chime dimensions: 68mmx68mmx25mm.
Operating temperature: -20°~+50°C.
Battery charging temperature: 0°~+45°C.
Protection class: IP54.
Camera color: white, black.
Doorbell color: white.
Mounting: surface-mounted.
Weight: camera: 256g (287g with bracket), doorbell: 65g.

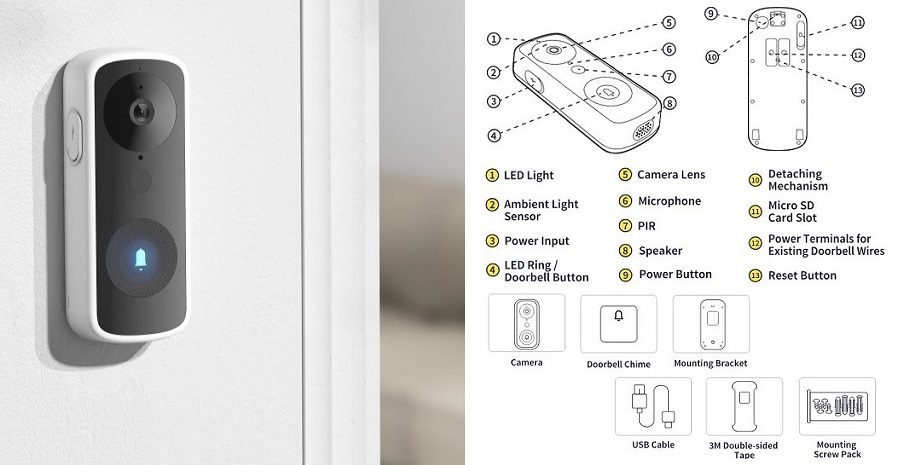

The set includes:
Doorbell camera.
Indoor chime.
Power cable USB Type-A to USB Type-C.
Mounting screw set.


Warranty: 24 months.


Download Manual
