Inverter GROWATT SPF5000ES, 5kW, 1-phase, 48V, 100A MPPT, 450V
Inverter GROWATT SPF5000ES, 5kW, 1-phase, 48V, 100A MPPT, 450V
Kirjeldus
Inverter GROWATT SPF5000ES, 5kW, 1-phase, 48V, 100A MPPT, 450V

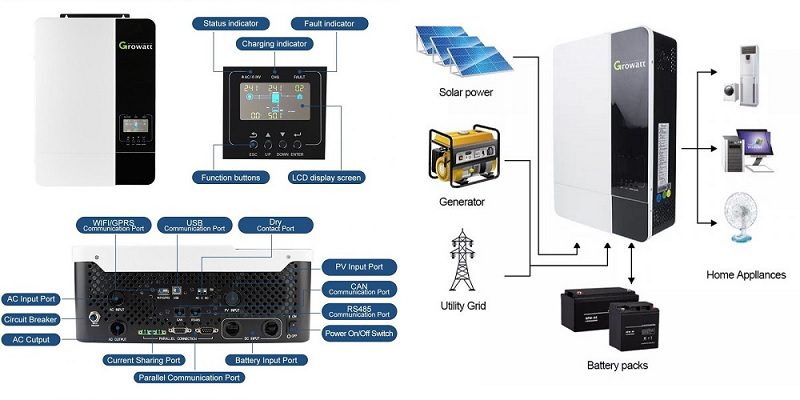

Solar inverter GROWATT SPF5000ES, 5kW, 1-phase, 48V, 100A MPPT, 450V Features: Multifunction inverter/charger, combining functions of inverter, MPPT 100A solar charger and battery charger to offer uninterruptible power support with portable size. No battery is required for this inverter. The LCD display allows you to set operating parameters and charger priorities. Rated power 5kW. Solar panels power up to 6kW. The maximum PV open circuit voltage is 450V DC and the MPPT voltage is 120~430V DC, allowing full use of solar energy. Support parallel operation for capacity expansion up to 30kW. Integrated MPPT 100A PV charge controller. Combination power supply from solar, AC or battery to ensure continuous power supply. Flexibly schedule the Inverter charging and discharging time.
Technical specifications: Battery voltage: 48V DC. Rated power: 5000W. Surge power: 10000VA. Waveform: pure sine wave. Battery type: lithium/lead-acid. Transfer time: 10ms/20ms. Frequency: 50/60Hz. PV array open circuit voltage max: 450V DC. MPPT voltage range: 120~430V DC. Max. solar charge current: 100A. PV array power max: 6000W. Display: LCD. Operating temperature: 0°C~+55°C. Dimensions: 330x485x135mm. Weight: 12kg.
Warranty: 24 months.
Specifications
Default battery voltage | 48V DC (Lithium / Lead-acid) |
Inverter output | |
Rated power | 5000VA / 5000W |
Surge power | 10000VA |
Waveform | pure sine wave |
AC voltage regulation (Battery mode) | 230V AC +/- 5% @ 50/60Hz |
Transfer time | 10ms (typical) / 20ms (max) |
AC charger | |
Charge current | 80A |
Voltage | 230V AC |
Selectable voltage range | 170~280V AC (for PC) / 90~280V AC (for home appliances) |
Frequency range | 50Hz / 60Hz (Auto sensing) |
Efficiency | |
Inverter efficiency (peak) | 93% |
Solar charger | |
Maximum PV array open circuit voltage | 450V DC |
MPPT range @ operating voltage | 120~430V DC |
Number of independent MPP trackers | 1 |
Strings per MPP tracker | 1 |
Maximum solar charge current | 100A |
Maximum PV array power | 6000W |
General specifications | |
Dimensions(W*H*D) | 330*485*135 mm |
Protection degree | IP20 |
Net weight | 11.5 kg |
Altitude | < 2000m |
Operating temperature | 0°C to 55 °C |
Humidity range (non-condensing) | 5% – 95% |
Storage temperature | -15°C to 60 °C |
Warranty: The warranty of the voltage converter (inverter) is valid from the day when we (the seller) is provided with the serial number of the inverter, the purchase invoice, a certified electrician’s certificate about the installed: 1) Lightning protection and overvoltage limiter (on the input side) 2) Lightning protection (between solar panels and inverter) 3) DC voltage switch between panels and inverter 4) Dedicate grounding for solar panels separated from grounding of the house
The 2-year (24-month) manufacturer’s warranty begins from the day of purchase, but comes into effect only after submission of these documents. Note: Lightning strike is not a valid warranty claim, it is classified as insurance claim.
