Elektriautode laadimisjaam, tüüp 2, 22kW, 32A, 3-faasiline, 5m

Electric Car Charging Station, Type 2, 22kW, 32A, 3-phase, 5m

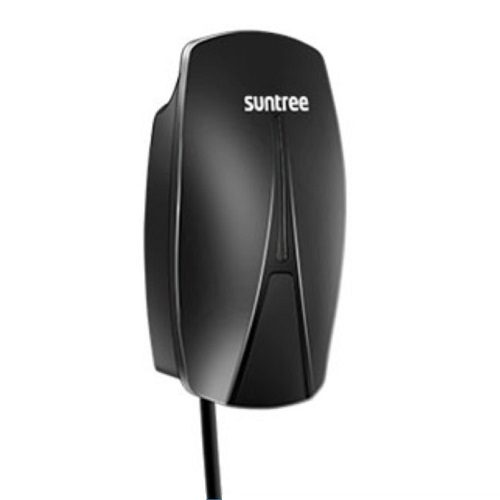

Charging station for electric cars 22kW, 32A, 3-phase, with Type 2 connector, wall-box, IP65 (for indoor and outdoor conditions), charging cable 5m, Plug&Play, 2x RFID, TUYA App.

Features:
The charging station allows charging up to 22kW.
Charging cable for electric cars 5m.
Type 2 connector, European standard. Compatible with any vehicle using an appropriate adapter (Type 1 Yazaki, Tesla, etc.).
Powerful, but light weight and compact size. With charging indicators.
Easy to use, intuitive interface allows you select the desired charging mode quickly and easily.
TUYA SMART App control supported.
Plug&Play supported (charging starts automatically after connecting the device to the battery of an electric vehicle).
2 RFID cards are included.


Specifications:
Max. charging current: 32A (3-phase).
Max. charging power: 22kW (3-phase).
Input: 380~400V AC (3-phase), 32A (max.), 50 / 60Hz.
Output: socket IEC 62196-2, Type2 (European), Mennekes, 7 contacts.
Communication: Bluetooth, Wi-Fi 2.4GHz.
RFID reader: Mifare ISO/IEC 14443A (max5).
Working temperature: -30°C~55°C.
Operating humidity: 5-95% RH.
Safety class: IP65 (adapted to indoor and outdoor conditions).
Protection: emergency stop, overload, short circuit, power line, leakage, ground protection.
Certifications: CE, ROHS.
Housing material: ABS+PC.
Color: black.
Cable length: 5m.
Dimensions: 315 x 163 x 92 mm.
Weight: 3.6kg.


Warranty: 24 months.
