Elektriauto laadija tüüp 2 – Schuko (220V), 6-16A, 3,5kW, 1-faasiline, 5m

Electric Car Charger Type 2 – Schuko (220V), 6-16A, 3.5kW, 1-phase, 5m

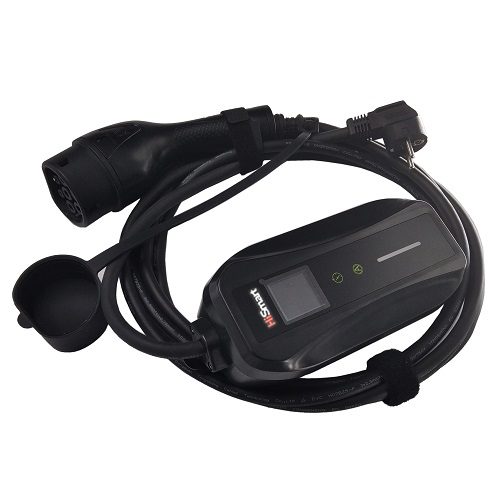

Portable charger for electric cars, with Type 2 plug, 16A, 3.5kW, single-phase, with LED screen and 2 touch buttons, with 5m cable.


Features:
The portable charger allows you to charge electric cars from the AC network with a power of up to 3.5 kW.
Type 2 electric car connector (European standard) and Schuko plug.
5 meter long charging cable.
LED display screen and two touch buttons: Current button and Time button.
The touch button allows you to select the charging current (6-16A). Time button for setting charging start time (30min to 5 hours).
Due to its low weight, it is easy to transport.


Technical data:
Max. charging current: 6-16A (1-phase).
Max. charging power: 3.5kW.
Operating voltage: 220V AC, 50/60Hz.
Cable length: 5 m.
Input: Schuko, 16A, 200-250V, 2 contacts.
Output: EV plug IEC 62196, Type2 (European), Mennekes, 7 connectors.
Cable dimensions: 3×2.5mm²+1×0.75mm² (EN50620).
Size: 220 x 60 x 100 mm.
Safety class: IP66 for charger, IP54 for plug.
Protection against: overheating, over-voltage, overload, under-voltage, short circuit, surge, earth-leakage; Ground protection.
Operating temperature: -25°C ~+50°C.
Operating humidity: <95% RH (non-condensing). Certificates: CE. Color black.

Warranty: 24 months.
