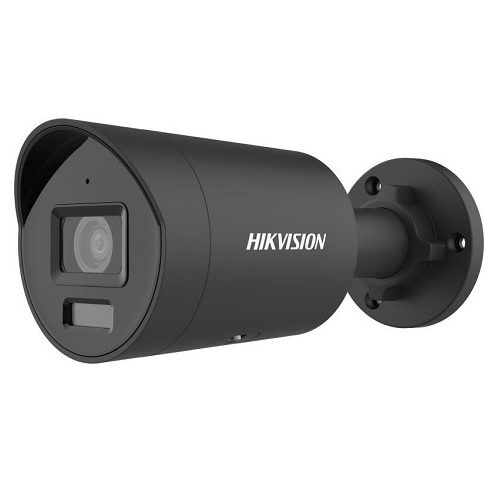

IP Camera Hikvision DS-2CD2047G2H-LIU F2.8 Black

• High quality imaging with 4 MP resolution
• Smart Hybrid Light: advanced technology with long range
• Clear imaging against strong back light due to 130 dB WDR technology
• Efficient H.265+ compression technology
• Focus on human and vehicle classification based on deep learning
• -U: Built-in microphone for real-time audio security
• Water and dust resistant (IP67)

Specifications
Camera
• Image Sensor 1/1.8″ Progressive Scan CMOS
• Max. Resolution 2688 × 1520
• Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light
• Shutter Time 1/3 s to 1/100,000 s
• Day &amp
Night IR cut filter
• Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
• Lens Type Fixed focal lens, 2.8 and 4 mm optional
• Focal Length &amp
FOV 2.8 mm, horizontal FOV 104.0°, vertical FOV 54.4°, diagonal FOV 126.7°
• Lens Mount M16
• Iris Type Fixed
• Aperture F1.0
• Depth of Field 2.8 mm: 2.5 m to infinite
DORI
• DORI 2.8 mm: D: 61 m, O: 24 m, R: 12 m, I: 6 m
Illuminator
• Supplement Light Type IR, White Light
• Supplement Light Range Up to 40 m
• Smart Supplement Light Yes
• IR Wavelength 850 nm
Video
• Main Stream 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*The third stream is supported under certain settings.
• Video Compression
Main stream: H.265/H.264/H.264+/H.265+,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264,
*Third stream is supported under certain settings.
• Video Bit Rate 32 Kbps to 8 Mbps
• H.264 Type Baseline Profile, Main Profile, High Profile
• H.265 Type Main Profile
• Bit Rate Control CBR, VBR
• Scalable Video Coding (SVC) H.264 and H.265 encoding
• Region of Interest (ROI) 1 fixed region for main stream and sub-stream
Audio
• Audio Compression -U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64
Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
• Audio Sampling Rate -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering -U: Yes
Network
• Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP,
SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP,
WebSocket, WebSockets, SRTP, SFTP
• Simultaneous Live View Up to 6 channels
• API Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
• User/Host Up to 32 users
3 user levels: administrator, operator, and user
• Security
Password protection, complicated password, HTTPS encryption, 802.1X authentication
(EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest
authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network
Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS
1.1/1.2/1.3, host authentication (MAC address)
• Network Storage NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
• Client iVMS-4200, Hik-Connect, Hik-Central
• Web Browser
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
• Image Parameters Switch Yes
• Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance,
adjustable by client software or web browser
• Day/Night Switch Day, Night, Auto, Schedule
• Image Enhancement BLC, HLC, 3D DNR
• SNR > /= 52 dB
• Wide Dynamic Range (WDR) 130 dB
• Privacy Mask 4 programmable polygon privacy masks
Interface
• Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Built-in Microphone -U: Yes
• Reset Key Yes
Event
• Basic Event Motion detection (support alarm triggering by specified target types (human and
vehicle)), video tampering alarm, exception
• Linkage Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger
capture, send email
• Smart Event: Scene change detection
Deep Learning Function
• Face Capture: Yes
• Perimeter Protection: Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
General
• Power
12 VDC ± 25%, 0.45 A, max. 5.5 W, Ø 5.5 mm coaxial power plug, reverse polarity
protection,
PoE: IEEE 802.3af, Class 3, max. 7 W
• Material Front cover: Metal, body: Metal, bracket: Metal
• Dimension: D74.4 mm × 179.2 mm (D 2.9″ × 7.1″)
• Package Dimension: 234 mm × 120 mm × 117 mm (9.2″ × 4.7″ × 4.6″)
• Weight Approx. 525 g (1.2 lb.)
• With Package Weight Approx. 750 g (1.7 lb.)
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• General Function: Heartbeat, mirror, password reset via email, pixel counter, anti-banding
• Language
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian,
Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish,
Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese,
Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Approval
• EMC
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN
50130-4: 2011 +A1: 2014,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015,
RCM: AS/NZS CISPR 32: 2015
• Safety
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005
• Environment CE-RoHS: 2011/65/EU
• Protection IP67: IEC 60529-2013
