Smart Energy Monitor 3P+N,120A, DIN, Tuya, Wi-Fi

Smart Energy Monitor 3P+N,120A, DIN, Tuya, Wi-Fi

Smart energy monitor, 3P+N,120A, DIN, Wi-Fi, Tuya

Features:
The smart energy monitoring device consists of one monitor installed on DIN rail and three split-core current transformers (CTs).
The smart energy monitor is an advanced device designed to effectively and accurately track energy consumption in three-phase systems with a neutral wire (3P+N). It can also be applied to a single-phase system.
Advanced energy monitoring: real-time voltage, current, power, electricity consumption and frequency measurements.
Current measurement up to 120A (per phase) ensures accurate monitoring of energy consumption in both residential and commercial facilities.
Split-core current transformers (CTs) are of 16mm diameter, they allow for quick and convenient installation of the system without interrupting the existing electricity supply. Three independent detection modules allow monitoring each phase separately and identifying energy consumption irregularities.

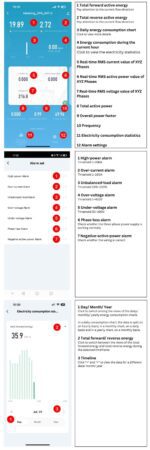

Convenient device connection via the Tuya smart home app. The app allows you to view energy consumption history and data analysis in real time.
Using 2.4GHz Wi-Fi, Tuya app supports Android or iOS smart devices.
Voice control compatible with Amazon Alexa and Google Assistant.
Three Split-core current transformers (CTs) are included.


Technical specifications:
Max. current (Imax): 120 A.
Operating voltage: 220~240V AC (phase-neutral) / 380~415V AC (phase-phase).
Frequency: 50/60 Hz.
Insulation voltage (Ui): 440 V.
Energy measurement accuracy: 1%; Class 1.
Max. consumption: <2VA. Rated impulse withstand voltage (Uimp): 4 kV. Surge category: III. Connection type: Wi-Fi (2.4 GHz). App: Tuya Smart / Smart Life (Android, iOS). Works with Amazon Alexa & Google Assistant. Reset button: yes. Installation: DIN rail. Protection class: IP20. Operating temperature: -25°C~+70°C.

Warranty: 24 months.
