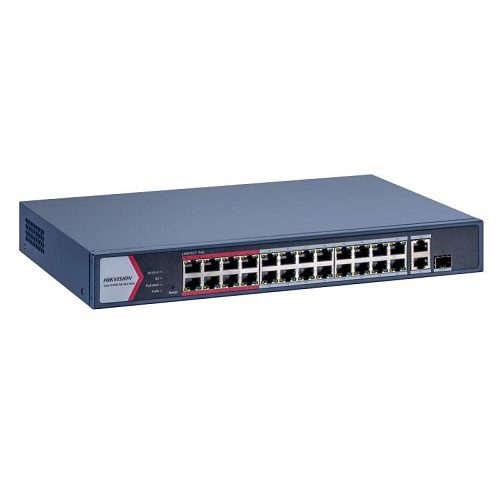

PoE Switch Hikvision DS-3E1326P-EI/M

24 Port Fast Ethernet Smart POE Switch&#x
&#x
Features&#x
&#x
Model: DS-3E1326P-EI/M&#x
24 × 10/100M PoE ports, 1 × Gigabit combo,1 × Gigabit RJ45 port&#x
Total PoE Power Budget 230 W&#x
Support 802.1Q VLAN&#x
Support PoE watchdog to detect and restart the cameras that do not respond&#x
Support STP/RSTP Loop prevention&#x
Support cable detection to locate failure&#x
Up to 300 m Long Range PoE Transmission&#x
6 kV Surge Protection&#x
&#x
Specifications:&#x
&#x
General&#x
• Shell: Metal material&#x
• Net Weight: 2.13 kg (4.7 lb)&#x
• Gross Weight: 3.1 kg (6.8 lb)&#x
• Dimension (W x D x H): 440.00 mm x 44.00 mm x 220.80 mm (17.32” x 1.73” x 8.69”)&#x
• Working Temperature: 0 °C to 45 °C (32 °F to 113 °F)&#x
• Storage Temperature: -40 °C to 85 °C (-40°F to 185 °F)&#x
• Relative Humidity: 5% to 95% (no condensation)&#x
• Power Supply: 100-240 VAC, 50/60 Hz, Max. 4 A&#x
• Max. Power Consumption: 250 W&#x
• Power Consumption in Idle: 20 W&#x
• Installation Mode: Rack (equipped with mounting ears)&#x
• Surge Protection: 6 KV&#x
Network Parameters&#x
• Ports: 24 x 10/100 Mbps PoE port, 1 x Gigabit combo,1 x Gigabit RJ45 port&#x
• MAC Address Table: 16 K&#x
• Switching Capacity: Whole-Device Performance: 14.8 Gbps
Port Performance: 8.8 Gbps&#x
• Packet Forwarding Rate: Whole-Device Performance: 11.01 Mpps
Port Performance: 6.55 Mpps&#x
• Internal Cache: 4 Mbits&#x
PoE Power Supply&#x
• PoE Standard: IEEE 802.IEEE 802.3at&#x
• PoE Power Pin: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)&#x
• PoE Port: Ports 1 to 24&#x
• Max. Port Power: 30 W&#x
• PoE Power Budget: 230 W&#x
Software Function&#x
• Long Range: Ports 1 to 24: up to 300 m. Long range performance may vary depending on camera model or cable condition.&#x
• VIP Port: Ports 1 to 8: data on VIP ports is preferentially forwarded when bandwidth resources are insufficient&#x
• Port Isolation: Ports 1 to 24: port isolation mode to improve network security. Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.&#x
• PoE Watchdog: Ports 1 to 24: auto detect and restart the cameras that do not respond.&#x
• Link Aggregation: Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection.&#x
Support static link aggregation.&#x
Support 1 aggregation group(s).&#x
• Loop Prevention: Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.&#x
Support 802.1D STP.&#x
Suppport 802.1w RSTP.&#x
• VLAN: VLAN is used for network scale planning and network health improvement.&#x
Support 802.1Q.&#x
Configurable VLAN ID from 1-4094.&#x
Support Trunk, Access port mode.&#x
Support Max. 4094 VLAN.&#x
• HPP: Support one-click activation and remote management via Hik-Partner Pro. Functions supported:&#x
1. Display the port rate.&#x
2. Display the port bandwidth utilization rate.&#x
3. Display the PoE power usage.&#x
4. Display topology information.&#x
5. Display the alarm status.&#x
6. Restart ports and devices.&#x
7. Enable port long-rage mode.&#x
8. Remotely upgrade the device.&#x
• System Maintenance: Support device management via web.&#x
Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.&#x
Support Super IP, which is a fixed IP address (10.180.190.200) for direct access.&#x
Support management via Hik-Central Pro.&#x
Support remote management via Hik-Partner Pro.&#x
Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.&#x
Supports 802.1ab LLDP for peer device discovery.&#x
Support port mirroring for fault locating.&#x
Approval&#x
• EMC: CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020), IC (ICES-003: Issue 7:2020), RCM (AS/NZS CISPR 32: 2015)&#x
• Safety: CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017)&#x
• Chemistry: CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)&#x
